Arizona Septic Site Plan And Leach Field Design

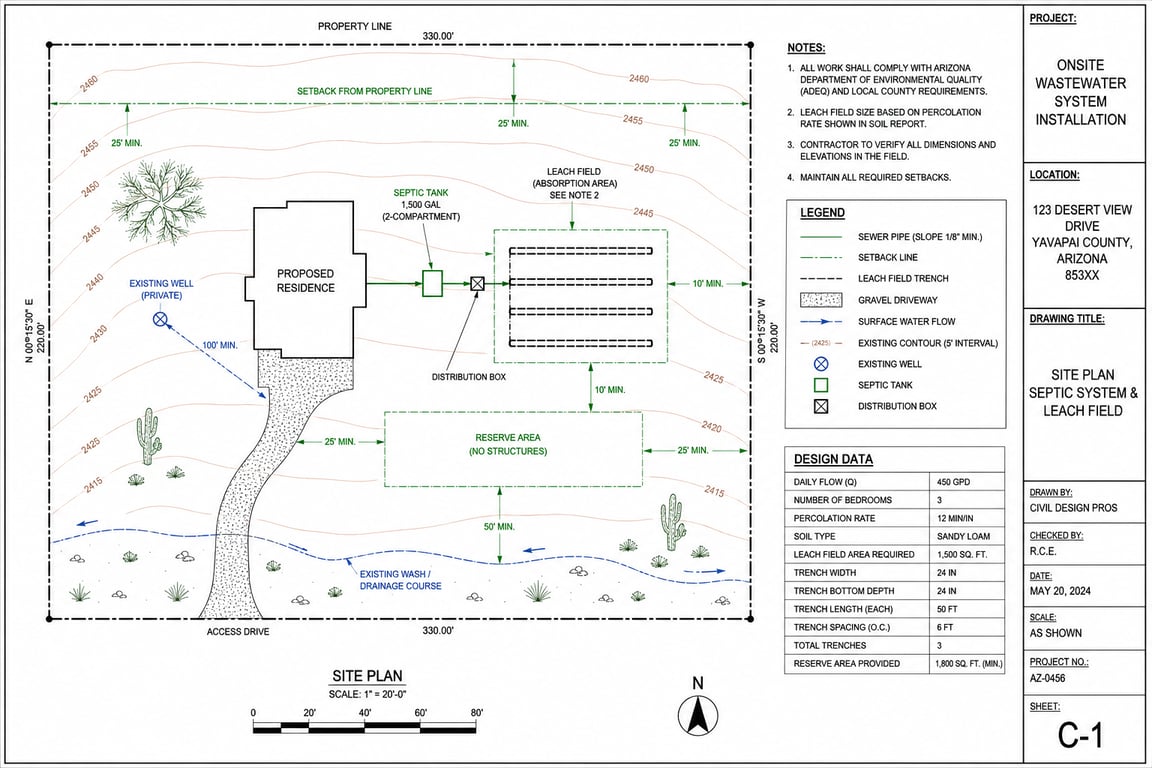

Septic and leach field design is important for Arizona properties that are not connected to a public sewer system. A clear site plan helps show the septic tank, absorption field, reserve area, proposed building, driveway, well location, drainage direction, and required setbacks for county or health department review.
Site And Soil Review
The design starts by reviewing the property survey, proposed building layout, soil report, perc test information, slope, drainage patterns, property lines, wells, nearby structures, and access routes. These details help determine the best location for the septic tank and leach field.
Leach Field And Drainage Coordination
The leach field must be protected from surface runoff, heavy traffic, buildings, driveways, and future improvements. In Arizona, site drainage is especially important because storm runoff can move quickly during heavy rain events. Drainage should be routed away from the septic area to reduce erosion, saturation, and system performance issues.
Code And Approval Context
Arizona septic systems are typically reviewed by the local county environmental health department or permitting authority. Requirements may include septic tank sizing, absorption field sizing, soil evaluation, reserve area, setbacks, groundwater separation, slope limits, inspection access, and maintenance requirements.
What We Can Provide
- Septic site plan
- Septic tank layout
- Leach field / absorption field design
- Reserve area coordination
- Soil and perc data review
- Well and setback coordination
- Drainage flow direction
- Driveway and access coordination
- County review support
- Permit-ready PDF and DWG drawings
Need Septic Design For Arizona Approval?
Send your property survey, project address, proposed building layout, soil or perc report, well location, drainage information, and county comments. We can prepare a clear septic and leach field site plan for Arizona approval and permit review.
