California Septic Site Plan And Leach Field Design

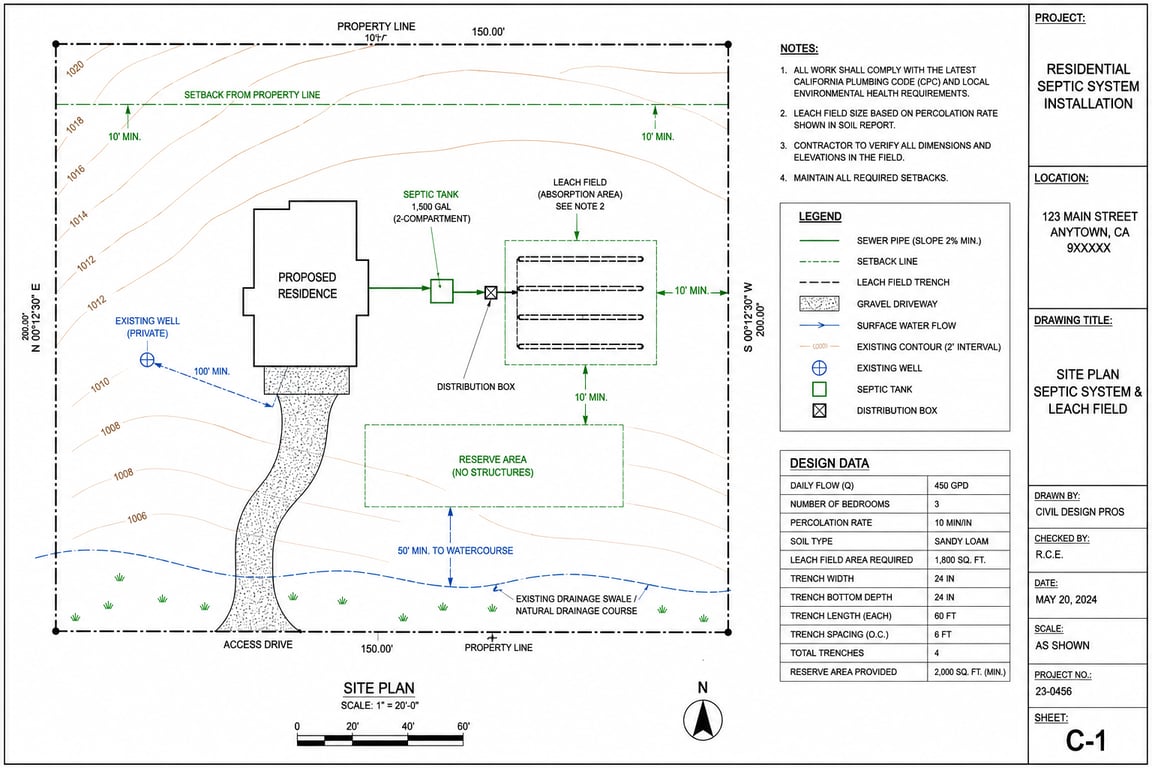

Septic and leach field design is required for California properties that are not connected to a public sewer system. A proper site plan helps show the septic tank, absorption field, reserve area, proposed building, well location, access, drainage direction, and required setbacks for county or health department review.
Site And Soil Review
The design starts by reviewing the property survey, proposed building layout, soil report, perc test information, slope, drainage patterns, property lines, wells, driveways, and nearby structures. These details help determine the best location for the septic tank and leach field.
Leach Field And Drainage Coordination
The leach field must be protected from surface runoff, heavy traffic, buildings, driveways, and future site improvements. Rainwater and site drainage should be directed away from the septic area to prevent saturation, erosion, and system performance issues.
Code And Approval Context
California septic systems are typically reviewed by the local county environmental health department or permitting authority. Design requirements may include tank sizing, soil absorption area, perc rate, reserve area, setbacks, groundwater separation, slope limits, inspection access, and maintenance requirements.
What We Can Provide
- Septic site plan
- Septic tank layout
- Leach field / absorption field design
- Reserve area coordination
- Soil and perc data review
- Well and setback coordination
- Drainage flow direction
- Driveway and access coordination
- County review support
- Permit-ready PDF and DWG drawings
Need Septic Design For California Approval?
Send your property survey, project address, proposed building layout, soil or perc report, well location, drainage information, and county comments. We can prepare a clear septic and leach field site plan for California approval and permit review.
