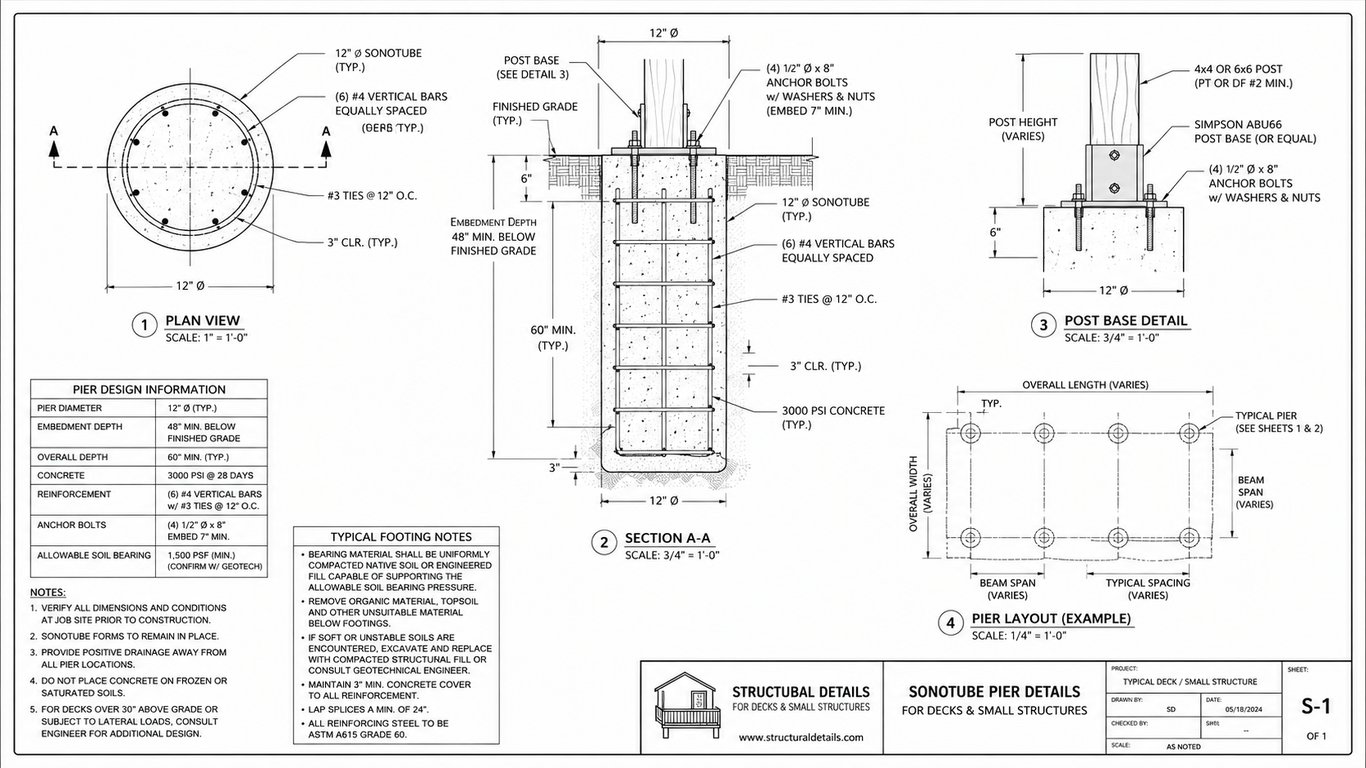

Sonotube Pier Design
Sonotube piers are commonly used to support decks, porches, sheds, pole barns, patio covers, and small building additions. They create round concrete piers that transfer loads from posts, beams, and framing down into the soil.
A proper sonotube design starts by checking the structure size, post spacing, supported loads, soil bearing capacity, frost depth, uplift forces, and lateral stability. The pier diameter, embedment depth, reinforcement, and post base connection must be selected based on the loads being carried.
Structural Checks
Sonotube pier calculations may include dead load, live load, roof load, snow load, wind uplift, tributary area, support reactions, concrete bearing, soil bearing, and anchor connection checks. These calculations help confirm that each pier can safely support the structure without settlement, uplift, or movement.
Code-Based Design
- IRC: Used for residential decks, porches, additions, and small structures.
- IBC: Used for commercial, larger, or non-standard structures.
- ACI 318: Used for concrete design, reinforcement, and anchorage checks.
- ASCE 7: Used for dead, live, snow, wind, and load combination requirements.
What We Can Provide
- Sonotube pier layout
- Pier diameter checks
- Pier depth calculations
- Post spacing review
- Soil bearing checks
- Reinforcement notes
- Post base and anchor notes
- Frost depth coordination
- Uplift and lateral checks
- Permit-ready pier details
Need Sonotube Pier Calculations?
Send your project address, structure size, sketches, post layout, photos, soil information if available, and any city comments. We can prepare sonotube pier calculations and structural details for permit review and construction coordination.
