Texas Metal Building Foundation Calculations
Pre-engineered metal buildings need proper foundation calculations before construction. Even when the steel building is designed by a manufacturer, the foundation must still be checked for the actual column reactions, base plates, anchor bolts, soil conditions, wind uplift, and load transfer into the ground.
Why Foundation Calculations Matter
Metal buildings can create high concentrated loads at columns, especially under wind uplift, lateral loads, large door openings, roof loads, and frame reactions. Without proper foundation design, the building may experience excessive movement, anchor failure, slab cracking, footing overstress, or poor load transfer.
Column Reactions, Base Plates And Anchor Bolts
The foundation design starts with the metal building reaction report. These reactions are used to size the pad footings, piers, grade beams, thickened slabs, anchor bolts, and base plate support. The design must check downward loads, uplift loads, lateral loads, shear transfer, anchor embedment, and concrete breakout where applicable.
Pad Footings, Piers, Grade Beams And Slab Coordination

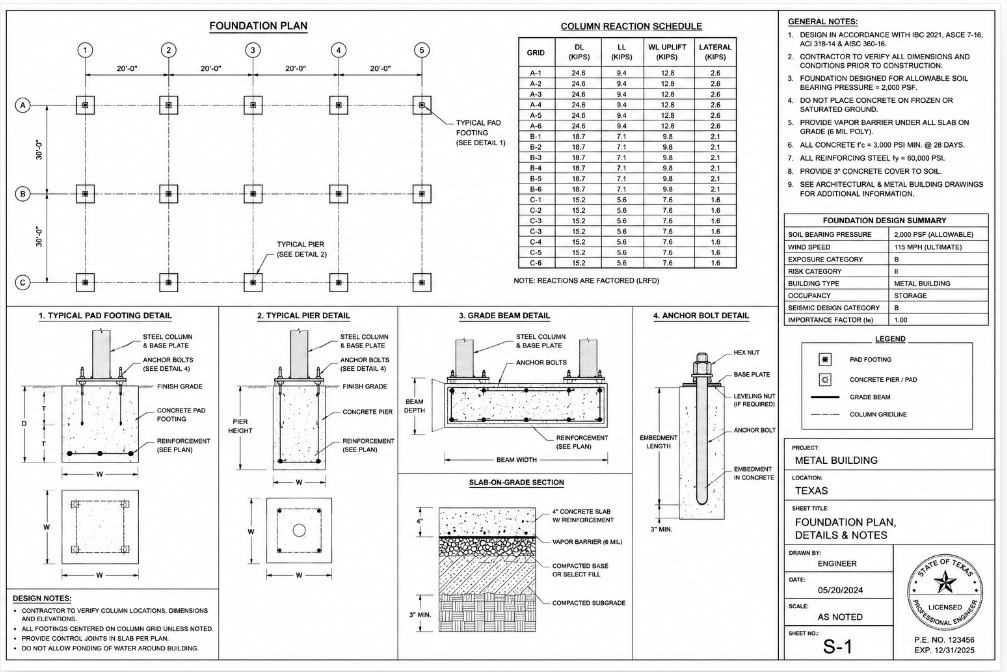

A complete foundation package may include isolated pad footings, concrete piers, perimeter grade beams, slab-on-grade design, thickened slab edges, anchor bolt plans, reinforcement details, vapor barrier notes, construction joints, and concrete placement requirements.
Structural Checks
Foundation calculations may include:
- Soil bearing pressure
- Sliding resistance
- Overturning stability
- Wind uplift checks
- Pier and footing sizing
- Concrete shear and flexure
- Reinforcement design
- Anchor bolt capacity
- Base plate support
- Slab reinforcement review
- Load transfer into soil
Code-Based Design
Foundation design may reference the IBC, IRC, ASCE 7, ACI 318, and AISC, depending on the building type, local jurisdiction, foundation system, and steel frame requirements.
What We Can Provide
- Metal building foundation calculations
- Pad footing and pier design
- Grade beam design
- Slab-on-grade coordination
- Thickened slab edge details
- Anchor bolt layout
- Base plate support review
- Soil bearing checks
- Wind uplift and overturning checks
- Reinforcement notes and details
- Permit-ready foundation drawings
Need Texas Metal Building Foundation Design?
Send your metal building plans, column reaction report, anchor bolt requirements, soil report, site plan, slab requirements, and project location. We can prepare foundation calculations and drawings for Texas metal buildings, shops, warehouses, barndominiums, equipment shelters, and pre-engineered steel structures.
