Septic System Layout And Rainwater Drainage Plan
A septic system and rainwater drainage plan must be coordinated carefully so wastewater treatment areas stay protected and surface water drains away from buildings, parking areas, and the absorption field.
Septic Tank And Absorption Field Placement

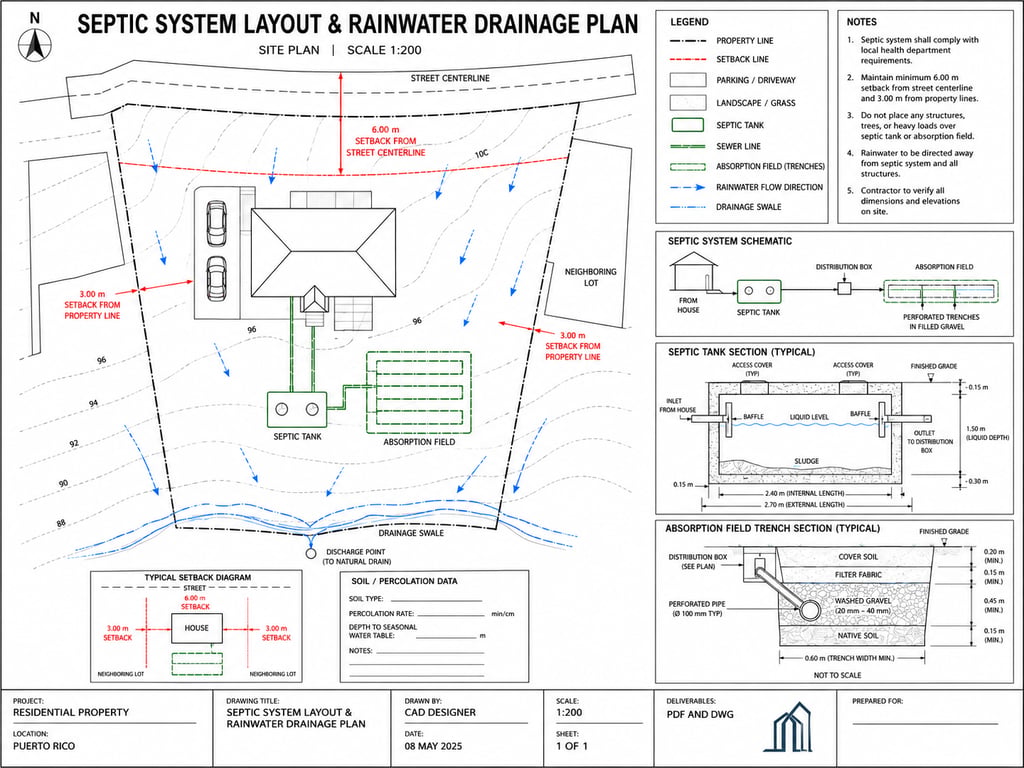

The design starts by reviewing the architectural plans, site layout, soil report, drone footage, existing slopes, access areas, and property boundaries. Septic placement options may include areas near the rear of the house, under or beside parking areas where permitted, or other suitable zones based on soil absorption capacity and required setbacks.
Setback And Site Constraints
The layout must respect required clearances, including a 6-meter setback from the center of the street and a 3-meter setback from neighboring lot lines. The septic tank, absorption field, drainage routes, and proposed site improvements must be positioned to avoid conflicts with structures, access paths, and future maintenance.
Rainwater Drainage Planning
Rainwater must be routed away from the house, parking area, septic tank, and absorption field. The drainage plan may include surface flow arrows, grading notes, swales, collection points, discharge paths, and drainage coordination based on the site slope shown in drone footage and topographic information.
What We Can Provide
- Septic tank location plan
- Absorption field layout
- Setback coordination
- Soil report review
- Drainage flow direction
- Rainwater routing plan
- Parking and access coordination
- Site slope review from drone footage
- Final site layout plan
- PDF and DWG deliverables
Need A Septic And Drainage Plan?
Send the architectural designs, soil/geotechnical report, drone footage, site survey, property boundaries, and any local authority requirements. We can prepare a coordinated septic system layout and rainwater drainage plan in PDF and DWG formats.
