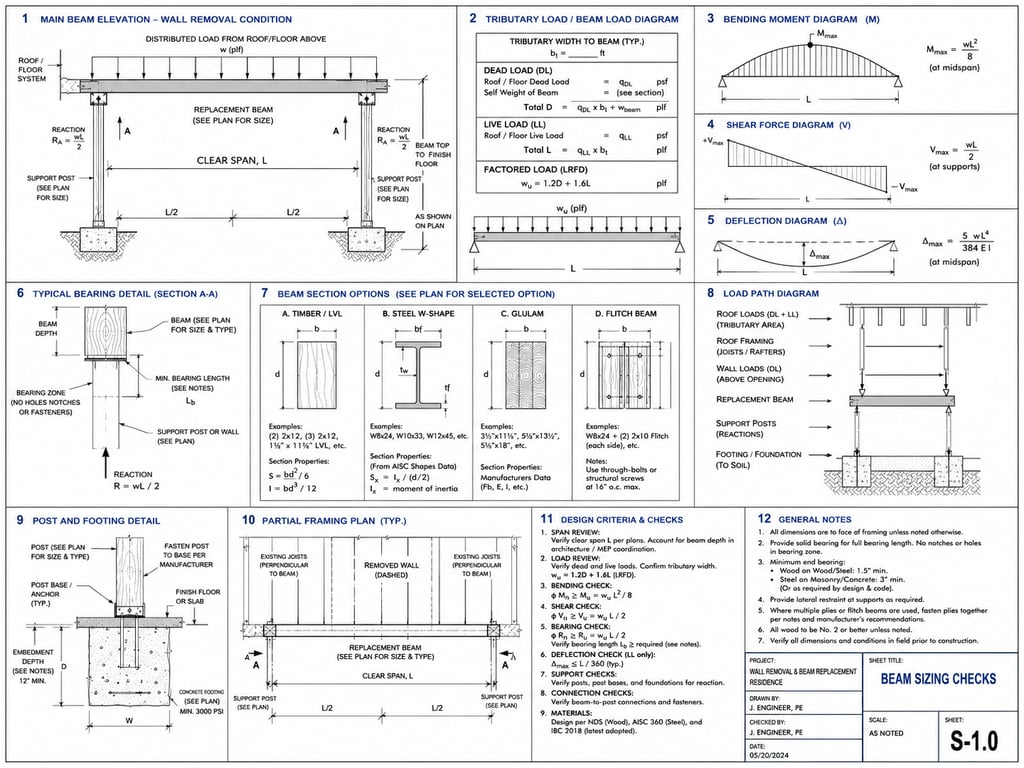

Beam Sizing Checks
Beam sizing is an important part of residential structural design. Before selecting a beam, we review the span, loading conditions, support points, wall locations, roof loads, floor loads, and any point loads coming from above.
Load Review
We calculate dead loads, live loads, roof loads, floor loads, and tributary areas to understand how much weight the beam must carry. The loads are then converted into line loads or point loads based on the project conditions.
Structural Checks
After the loads are confirmed, the beam is checked for bending, shear, bearing, and deflection. We also review support reactions, post sizes, connection points, and whether the load can safely transfer to the foundation or existing structure.
Beam Options
Depending on the project, the beam may be designed as timber, LVL, glulam, steel, or flitch beam. The final member size depends on the span, load, depth limits, support conditions, and applicable building code requirements.
What We Provide
- Beam load calculations
- Span and support review
- Bending checks
- Shear checks
- Bearing checks
- Deflection checks
- Post and reaction checks
- Beam sizing recommendations
- Connection notes
- Permit-ready structural drawings
Need Beam Sizing Support?
Send your project address, photos, existing plans, wall location, span dimensions, and project scope. We can prepare beam sizing calculations and structural drawings for your project.
