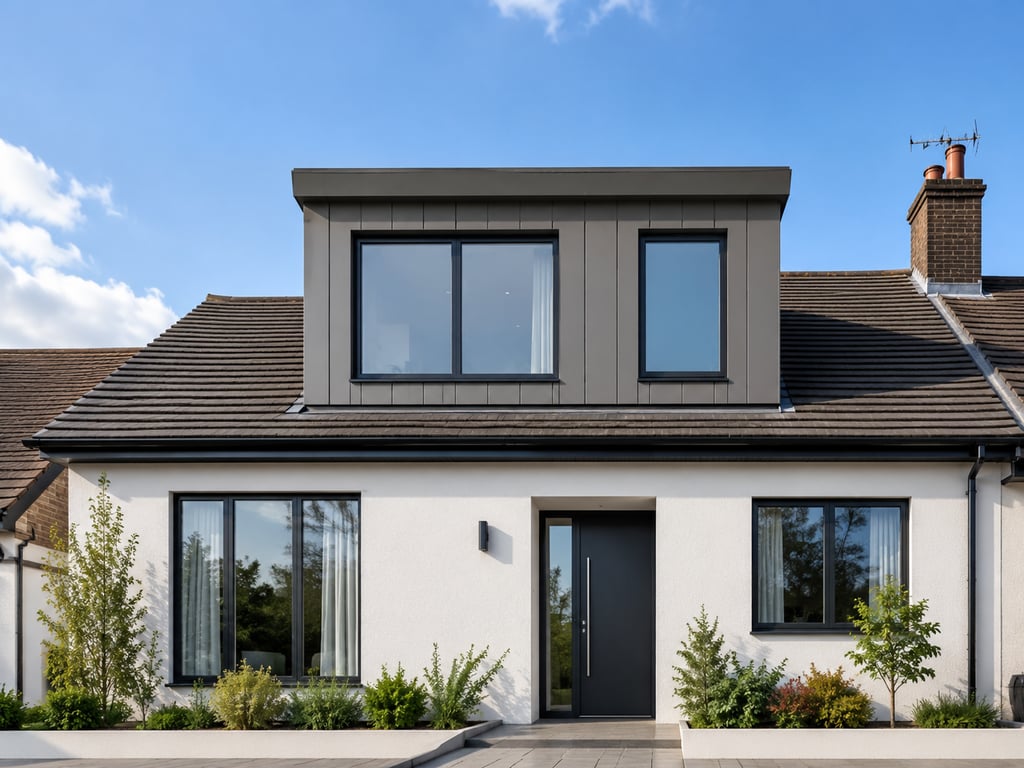

Dormer Header Beam Calculations
Dormer openings need proper structural support because roof and wall loads must be transferred safely around windows and doors. The header above the opening carries these loads and transfers them into the side supports.
The calculation starts by identifying the opening width, roof reaction load, wall load above the opening, and the proposed beam section. The total line load is then used to calculate bending moment, shear force, end reactions, and deflection.
A typical header check may include:
Design line load:
w = roof reaction + wall load above opening
Bending moment:
M = wL² / 8
Shear force:
V = wL / 2
Bending stress:
fb = M / Z
Deflection check:
δ = 5wL⁴ / 384EI
The header is checked to confirm that bending stress, shear stress, and deflection are within allowable limits. The end reactions are also reviewed so the supporting side studs, bearing points, and load path are adequate.
Code-Based Design
- Approved Document A: Structural safety and loading guidance for England.
- BS EN 1990: Basis of structural design and load combinations.
- BS EN 1995-1-1: Timber structural design checks.
What We Can Provide
- Dormer header calculations
- Opening span review
- Roof reaction checks
- Wall load calculations
- Bending and shear checks
- Deflection checks
- Bearing and end reaction checks
- Building control calculation support
The uploaded PDF uses this workflow for dormer opening checks, including line load calculation, bending, shear, deflection, and adequacy comparison for both large and small openings.
write in USA CONTEXT USE THE USA CODS SUCH AD IRCThought for 22s
Use this USA-context version for the post.
Title
Dormer Header Beam Calculations For Openings
URL Slug
dormer-header-beam-calculations
Category
Structural Calculations
Meta Description
Dormer header beam calculations for residential openings, including roof loads, span checks, bending, shear, deflection, bearing, and IRC-based structural design.
Post Content
Dormer Header Beam Calculations
Dormer openings need proper structural support because roof, wall, and ceiling loads must be transferred safely around windows and doors. The header above the opening carries these loads and transfers them into the side supports, walls, and foundation below.
The calculation starts by reviewing the opening width, roof span, tributary area, dead load, live load, snow load where applicable, bearing length, and support conditions. The total load is then used to calculate bending moment, shear force, end reactions, and deflection.
A typical header check may include:
Uniform load:
w = tributary load carried by the header
Bending moment:
M = wL² / 8
Shear force:
V = wL / 2
Bending stress:
fb = M / S
Deflection check:
Δ = 5wL⁴ / 384EI
The header is checked for bending, shear, bearing, and deflection to confirm that it can safely span across the opening. The side supports are also reviewed to confirm the load path continues down to the wall framing, posts, foundation, or existing structure.
Code-Based Design
- International Residential Code (IRC): Used for one- and two-family homes, townhouses, ADUs, additions, and residential remodels.
- International Building Code (IBC): Used where the project involves larger buildings, mixed-use spaces, commercial work, or non-standard residential conditions.
- ASCE 7: Used for design loads such as dead, live, roof live, snow, wind, seismic, and load combinations.
- NDS for Wood Construction: Used for wood member sizing, bending, shear, compression, bearing, and connection checks.
What We Can Provide
- Dormer header calculations
- Opening span review
- Roof and wall load checks
- Dead, live, snow, and wind load review
- Bending and shear checks
- Deflection checks
- Bearing and reaction checks
- Load path verification
- IRC / IBC code-based notes
- Permit-ready structural drawings
The USA version should reference the IRC for typical residential work, with IBC and ASCE 7 used where the project scope or jurisdiction requires them. The IRC is the common residential code for one- and two-family dwellings and townhouses, while ASCE 7 provides nationally used structural load criteria
