Dormer Structural Calculations
Dormer structural calculations are used to confirm that the proposed roof and wall framing can safely carry the applied loads. The design starts by reviewing the dormer geometry, roof span zones, wall height, opening widths, support conditions, and load path through the structure.
Loading Assessment
The roof loading is calculated from permanent loads and variable imposed loads. A typical ultimate limit state load combination may be:
Design load = 1.35G + 1.50Q
Example:
G = 0.60 kN/m²
Q = 1.00 kN/m²
Design load = 1.35 × 0.60 + 1.50 × 1.00
Design load = 2.31 kN/m²
This roof load is then converted into reaction line loads on the supporting walls.
Structural Checks
Once the loading is confirmed, each structural element is checked for safe load transfer. Typical checks include axial compression, bending stress, shear stress, end reactions, bearing, and deflection.
For a header over an opening, the design may include:
Bending moment = wL² / 8
Shear force = wL / 2
Bending stress = M / Z
Deflection = 5wL⁴ / 384EI
These checks confirm whether the proposed section can safely span across the opening without overstress or excessive movement.
Code-Based Design
Calculations may be prepared using Approved Document A, BS EN 1990 for design basis and load combinations, and BS EN 1995-1-1 for timber structural design. These standards help confirm structural safety, serviceability, and suitable design assumptions.
What We Can Provide
- Dormer structural calculation notes
- Roof load assessment
- Wall load calculations
- Load combination checks
- Opening support calculations
- Bending and shear checks
- Compression checks
- Deflection checks
- Load path verification
- Building control calculation support

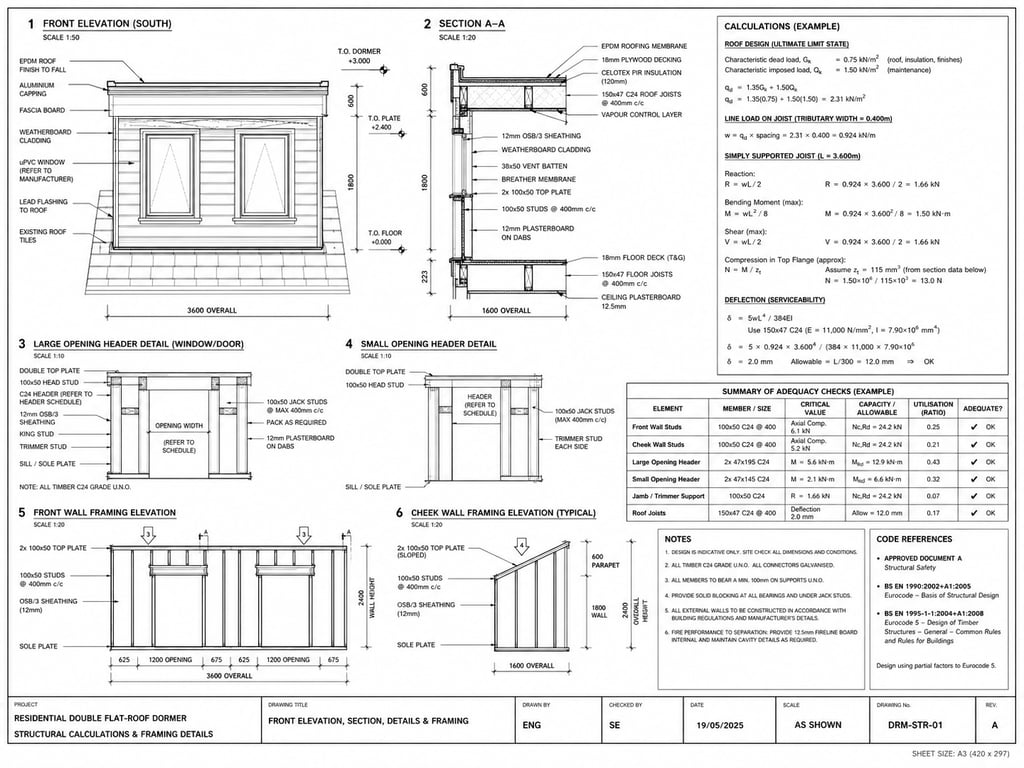

The uploaded calculation document uses this same type of workflow: design basis, geometry, adopted loading, load combinations, roof reactions, compression checks, header checks, deflection checks, and a final adequacy summary.
