Foundation Design And Footing Calculations For Additions

A building addition needs a foundation system that can safely support the new loads and transfer them into the ground. Whether the project is a room addition, ADU, porch extension, garage addition, deck, or second-story expansion, the footing design must be based on the structure above and the soil conditions below.

Loading And Soil Bearing

The design starts by reviewing roof loads, floor loads, wall loads, live loads, dead loads, snow loads where applicable, and any point loads from beams or posts. These loads are transferred down to footings, piers, slab edges, or foundation walls. The footing size is then checked against the allowable soil bearing capacity to confirm the ground can safely support the load.

Footing And Pier Checks

Footing calculations may include footing width, footing depth, pier diameter, post reactions, concrete strength, reinforcement, frost depth, uplift, settlement risk, and load path coordination. For additions, we also check how the new foundation connects or works near the existing foundation.

Code-Based Design

IRC: Used for one- and two-family residential additions, ADUs, decks, porches, and remodels.
IBC: Used for larger residential, mixed-use, commercial, or non-standard building conditions.
ACI 318: Used for concrete strength, reinforcement, anchorage, and structural concrete checks.
ASCE 7: Used for dead, live, snow, wind, seismic loads, and load combinations.

What We Can Provide

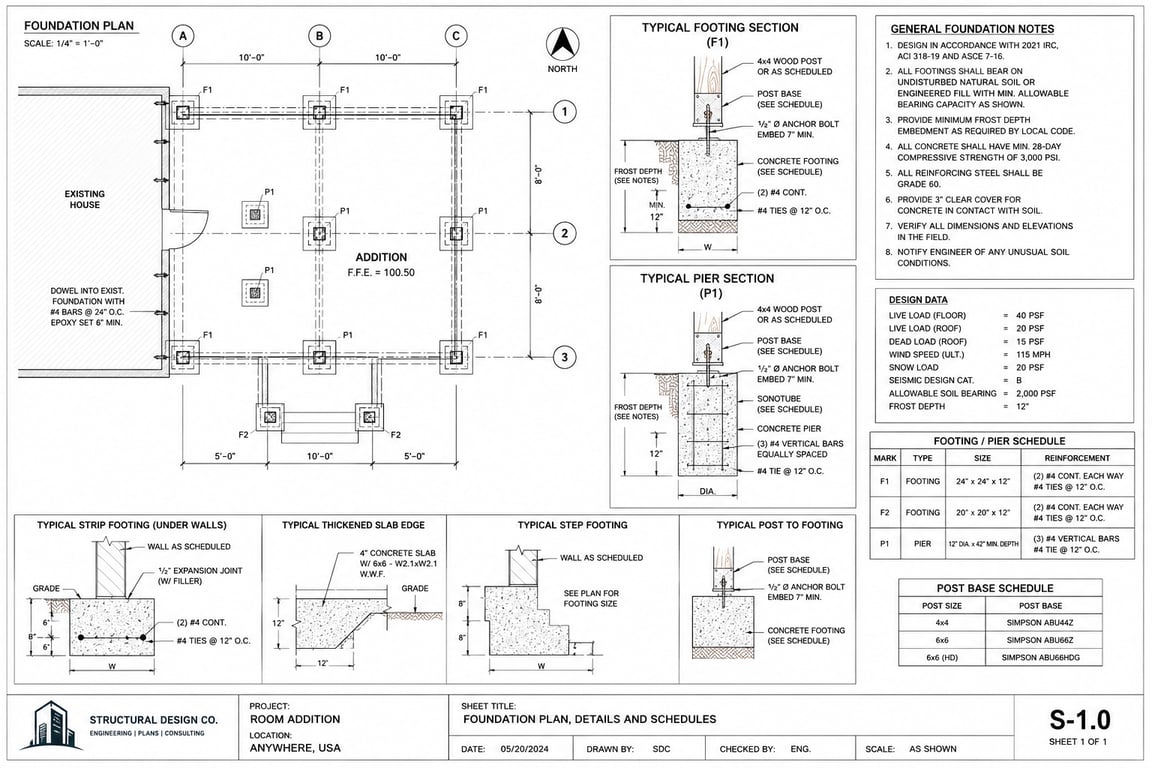

Foundation plans
Footing size calculations
Pier design
Post reaction checks
Soil bearing checks
Slab and stem wall notes
Frost depth coordination
Reinforcement notes
Load path verification
Permit-ready foundation details

Need Foundation Calculations?

Send your project address, sketches, existing plans, proposed addition layout, photos, soil information if available, and any city comments. We can prepare foundation design drawings and footing calculations for permit review and construction coordination.
