Mezzanine Connection Details And Structural Adequacy

A mezzanine floor is only as strong as its connections. Even when beams, joists, and columns are correctly sized, the structure must have proper connection details to transfer loads safely through the framing system.

Connection Design Review

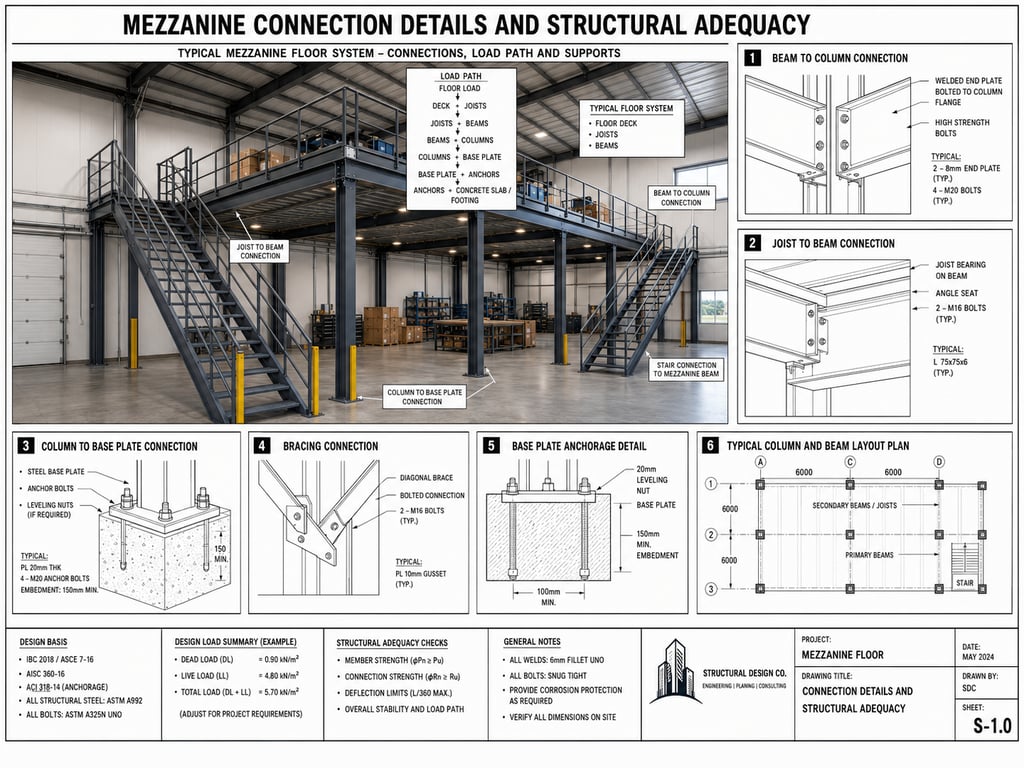

Connection details may include beam-to-column connections, joist-to-beam connections, base plates, anchor bolts, bracing connections, welds, bolts, bearing plates, and slab or footing support details. These connections are reviewed to confirm that vertical loads, lateral loads, and any concentrated loads can transfer safely through the structure.

Structural Adequacy Checks

Structural adequacy means checking that the full mezzanine system can support the intended use. This includes reviewing loading assumptions, member sizes, connection forces, support reactions, deflection limits, vibration where required, and the overall load path from the floor deck down to the supporting structure.

Code-Based Design

IBC: Used for commercial, industrial, warehouse, storage, and mixed-use mezzanine projects.
IRC: Used where mezzanine or loft conditions apply to residential projects.
ASCE 7: Used for dead loads, live loads, wind, seismic, and load combinations.
AISC: Used for steel beams, columns, bolted connections, welded connections, and base plates.
ACI 318: Used where concrete slabs, footings, anchors, or reinforced concrete supports are involved.
BS Codes / Eurocodes: Used for UK-based projects, including loading, steel design, timber design, connection checks, and structural safety.

What We Can Provide

Mezzanine connection details
Beam-to-column connection notes
Base plate and anchor checks
Bolt and weld coordination
Column and post support review
Load path verification
Member adequacy checks
Slab or footing support review
Structural calculation summary
Permit-ready mezzanine drawings

Need Mezzanine Connection Design?

Send your mezzanine layout, intended use, span dimensions, existing drawings, photos, column locations, slab information, and any permit comments. We can prepare mezzanine connection details, structural adequacy checks, and code-based calculation support.
