Roof Design And Structural Stability Checks

A residential roof must be designed to safely support gravity loads, wind loads, uplift forces, and the framing conditions created by the floor plan below. This is especially important for homes with vaulted ceilings, long spans, complex rooflines, or construction in high-wind areas.

Roofline And Framing Design

Roof structural design starts by reviewing the floor plan, elevations, wall layout, ceiling heights, vaulted areas, bearing walls, beam locations, and support points. From there, the roofline can be developed with clear framing logic, including rafters, ridge beams, hips, valleys, headers, posts, and load-bearing walls.

Wind And Stability Review

For areas with strong wind exposure, such as parts of Oklahoma, the roof must be checked for uplift, lateral stability, anchorage, and continuous load path. Calculations may include dead loads, roof live loads, wind loads, beam reactions, bearing checks, deflection limits, and connection requirements.

Code-Based Design

IRC: For one- and two-family residential roof framing.
IBC: Where broader building code review is required.
ASCE 7: For wind, roof, snow, seismic, dead, live loads, and load combinations.
NDS: For wood rafters, beams, headers, posts, and connection checks.

What We Can Provide

Roofline structural design
Roof framing layout
Vaulted ceiling support review
Ridge beam and rafter sizing
Hip and valley framing checks
Beam and header calculations
Wind uplift checks
Stability review
Connection and anchorage notes

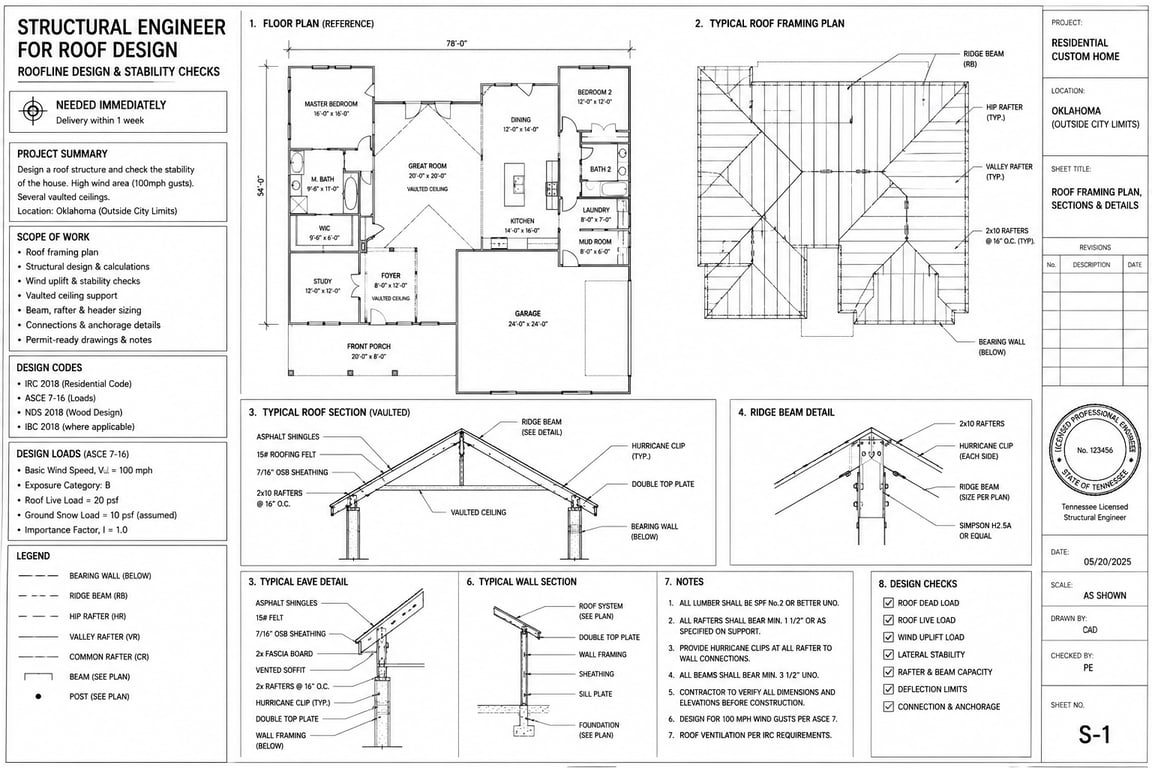

Permit-ready structural drawings

Need Roof Structural Design?

Send your floor plan, AutoCAD files, elevations, roof concept, ceiling layout, project location, and wind design requirements. We can prepare roof framing design, structural calculations, and stability checks for a safe and buildable residential roof system.
