Why Ridge Beam Sizing Is Needed Before Construction

Introduction

Ridge beam sizing is needed before construction because the ridge beam is often one of the main structural members in a roof system. It supports roof rafters, carries roof loads, controls deflection, and transfers forces down through posts, walls, beams, and foundations. If the ridge beam is guessed instead of properly sized, the roof may sag, spread, crack finishes, fail inspection, or require expensive changes after construction has already started.

A ridge beam is different from a simple ridge board. A ridge board is mainly used to align rafters at the roof peak. A structural ridge beam actually carries load. This difference matters because a structural ridge beam must be designed for strength, stiffness, bearing, connections, and load path.

Why Ridge Beam Sizing Matters

It Confirms The Beam Can Carry Roof Loads

Every roof has loads. These may include the weight of roofing materials, rafters, sheathing, ceiling finishes, insulation, maintenance loads, wind loads, snow loads, and other code-required loads depending on the project location and roof use.

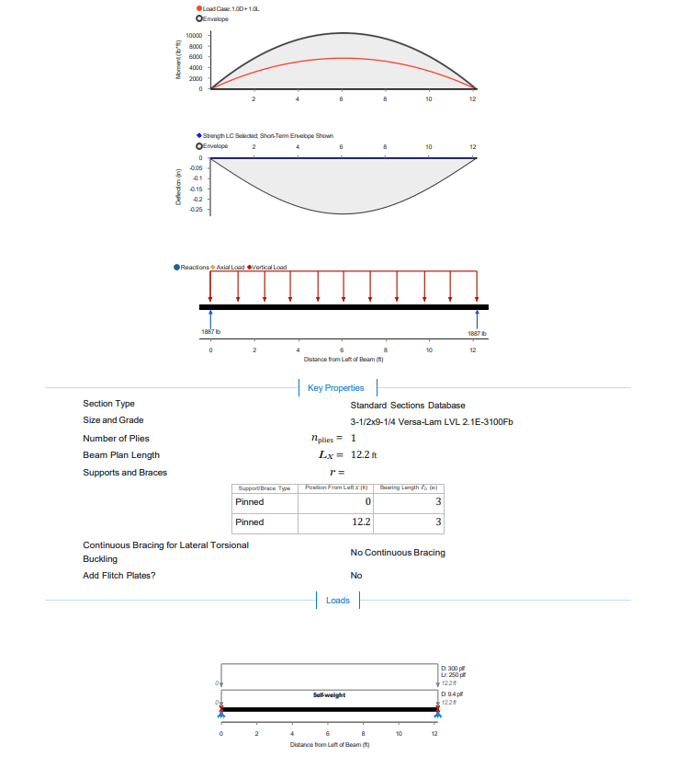

The ridge beam must be checked for bending, shear, and deflection. A beam may look large enough on site but still fail a deflection check. Excessive deflection can cause roof sagging, cracked finishes, uneven roof lines, and long-term serviceability problems.

It Confirms The Load Path

A ridge beam does not work alone. The loads from the rafters must transfer into the ridge beam, then into supporting posts, walls, beams, footings, or foundations. If the beam is strong but the supporting wall or post below it is inadequate, the roof system is still unsafe.

Before construction, ridge beam sizing should confirm where the loads go and whether the supports can carry them. This may include checking posts, bearing walls, connection points, pad foundations, footings, or existing framing below.

It Prevents Costly Construction Changes

Changing a ridge beam after installation can be expensive. It may require removing roof framing, altering walls, replacing posts, opening ceilings, or redesigning connections. Correct sizing before construction avoids unnecessary rework and helps contractors build with clear information from the start.

Building Code Considerations

Building codes generally require roof framing systems to safely resist all applicable loads and transfer those loads through a continuous structural path to the foundation. Ridge beams are usually reviewed as part of that structural load path.

Structural Safety

Codes require buildings to be designed so structural members have adequate strength and stability. For ridge beams, this means the beam must be sized to resist bending, shear, bearing, and deflection under the required design loads.

Roof Load Requirements

Codes typically require roof members to account for dead loads, imposed or live loads, snow loads where applicable, wind loads, and other environmental loads. Ridge beam sizing must use the correct design loads for the project rather than assumptions.

Deflection Limits

Building codes and structural standards often include serviceability limits. A ridge beam may be strong enough not to break, but still too flexible. Deflection limits help prevent roof sagging, ceiling cracking, water drainage issues, and poor long-term performance.

Bearing And Support

Codes require structural members to have adequate bearing and proper support. A ridge beam must sit on suitable bearing points such as posts, walls, beams, or engineered supports. The bearing area, compression capacity, and support condition should be checked.

Connections And Fixings

The beam, rafters, posts, hangers, straps, bolts, plates, or other connectors must be suitable for the applied loads. Proper connections help prevent separation, uplift failure, rotation, and movement under wind or roof loading.

Existing Building Alterations

Where a ridge beam is part of an alteration, addition, dormer, loft conversion, roof extension, or vaulted ceiling project, the existing structure must also be reviewed. Existing walls, rafters, ceiling joists, foundations, and supports may not have been designed for the new load arrangement.

Information Needed For Ridge Beam Sizing

A proper ridge beam design usually needs the roof span, ridge beam span, roof pitch, rafter spacing, roof covering, ceiling condition, support locations, existing drawings, photos, and local loading requirements. The designer may also need to know whether the beam will be timber, glulam, LVL, or steel.

Conclusion

Ridge beam sizing should be completed before construction because it confirms that the roof structure is safe, code-compliant, buildable, and properly supported. It helps avoid roof sagging, failed inspections, unclear load paths, and costly site changes. A correctly sized ridge beam gives contractors clear guidance and gives the owner confidence that the roof system has been properly reviewed before work begins.
